PROJECTS

Repair AND ARTICULATION

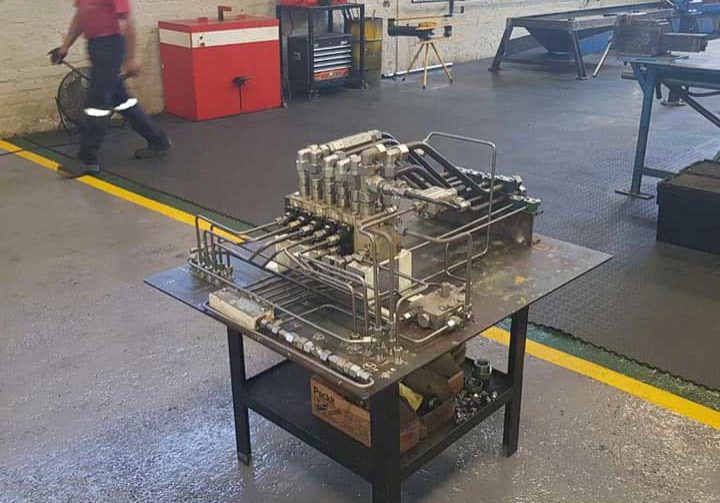

Repair hydraulic press and hydraulic steel pipe articulation on proportional valve bank with load moment protection for crane

PIPE INSTALLATION

Crane pipe installation of Palfinger PK 60000 and EFFER 65000

HYDRAULIC INSTALLATION

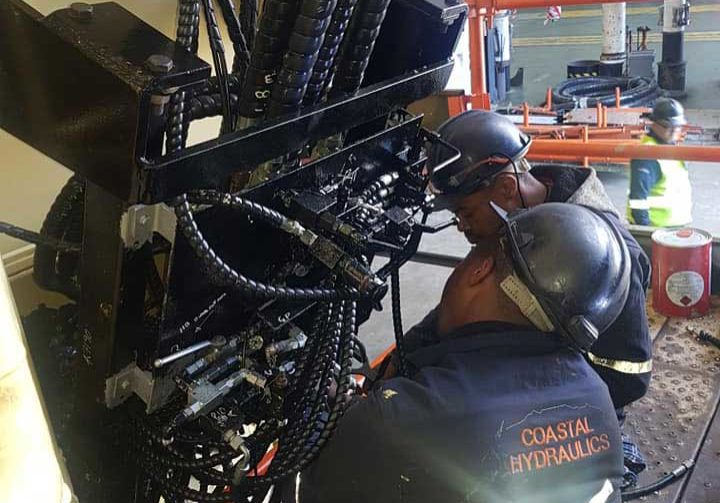

Hydraulic steelpipe and hose assemblies install

HYDRAULIC ARTICULATION AND REMOVAL

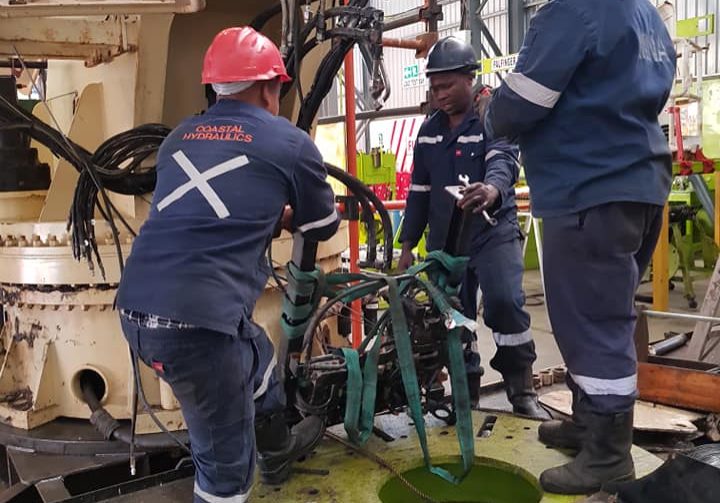

Hydraulic hose and steel pipe articulation for this crane. Removing rusted hydraulic hoses and steel pipes.

PIPING AND MANUFACTURING

Piping up hydraulic winch safety circuit. Also manufactured new hydraulic hose assemblies and steel blank them

INSPECTION

Effer 245 ton crane . Inspected by 2 senior workshop technicians to plan scope of work. The hydraulic hoses and fittings due to corrosion are a high risk to safety

RETICULATION – PART 1

Start of reticulation of hydraulic system on crane

RETICULATION – PART 2

8 days later firing up crane on plinth

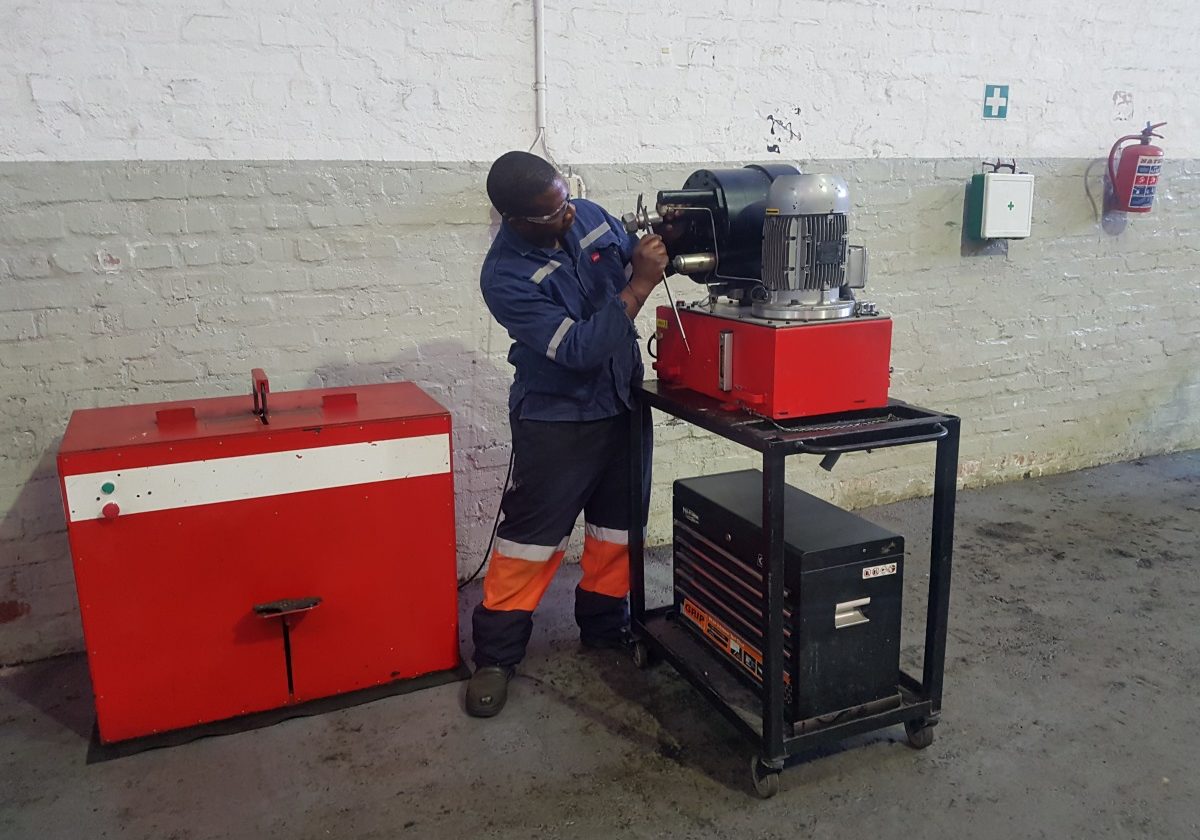

REPLACING, MANUFACTURING AND PRESSURE TESTING

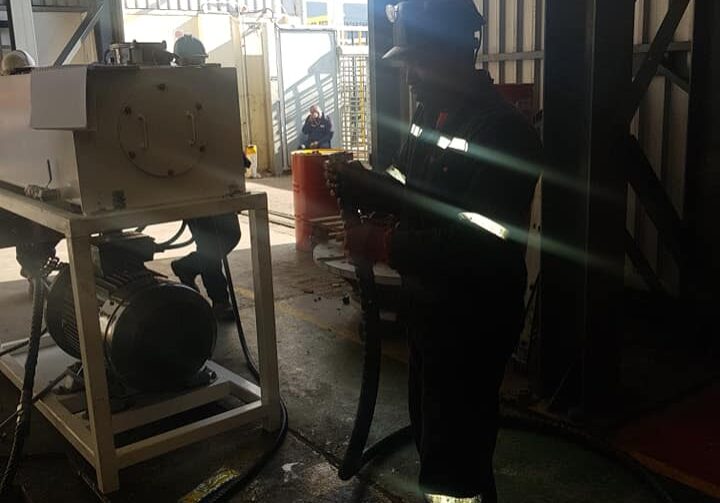

Replaced all this hydraulic hose assemblies with new manufactured hose assemblies, pressure tested with certificates

AIR ARTICULATION – PART 1

Getting ourselves ready to start air articulation of 2/1/2″ air ring main onsite.

ASSEMBLING – PART 2

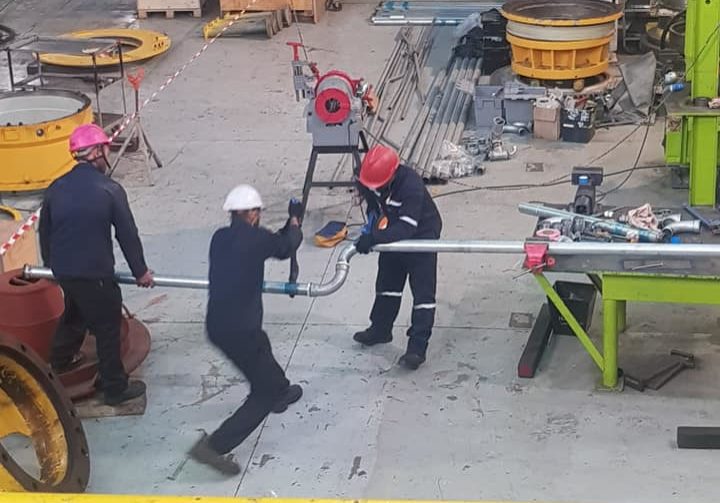

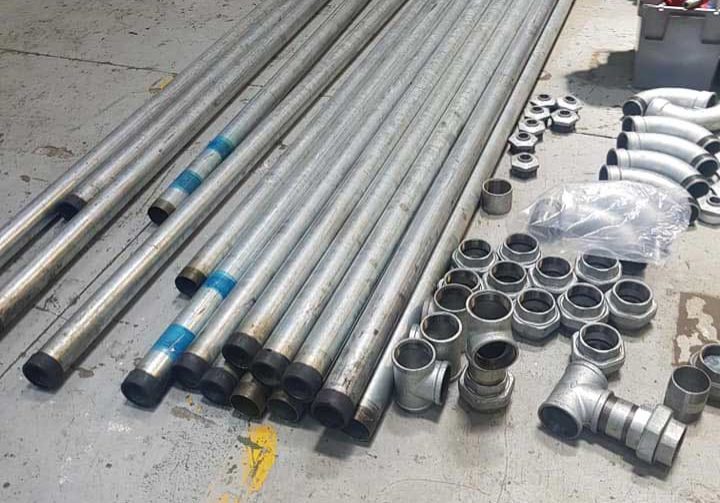

Started on air ring main. Assembling the galvanized steel pipe.

AIR ARTICULATION – PART 3

A very productive day for our team on the air articulation

AIR RING ARTICULATION – PART 4

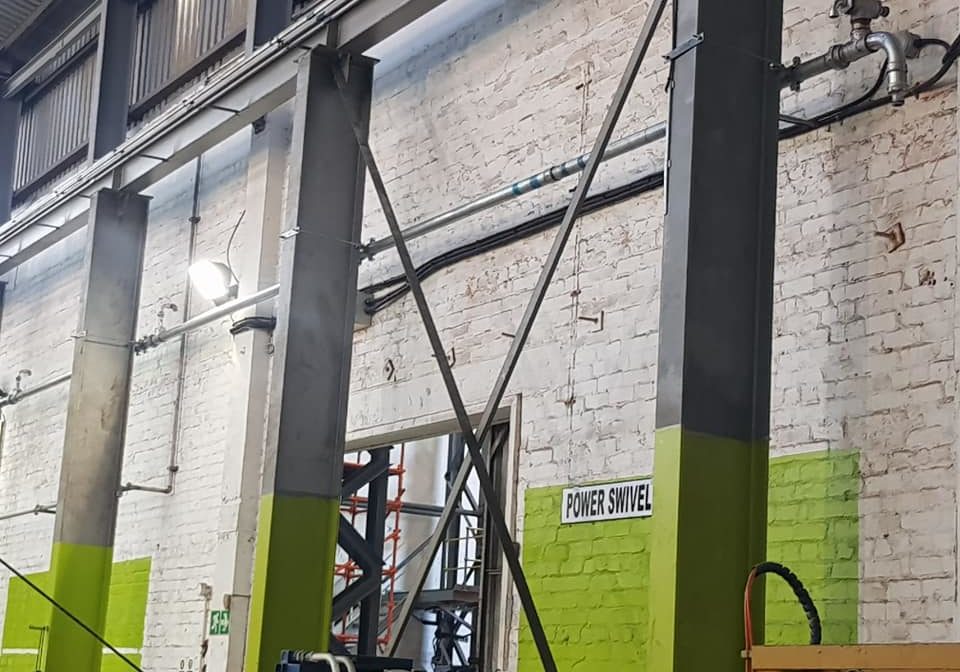

Progress on air ring articulation

INSTALLATION

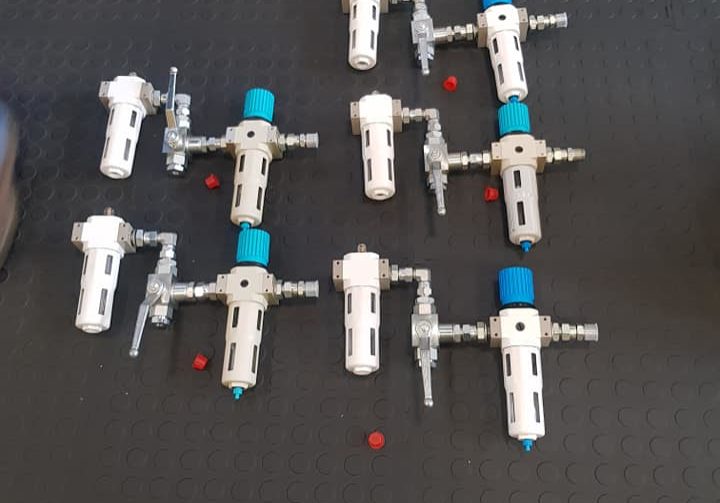

Installing water traps and air hose reels

AIR INSTALLATION

Almost time to start compressors. Team leader Paul and Alphonso are almost complete with air installation
